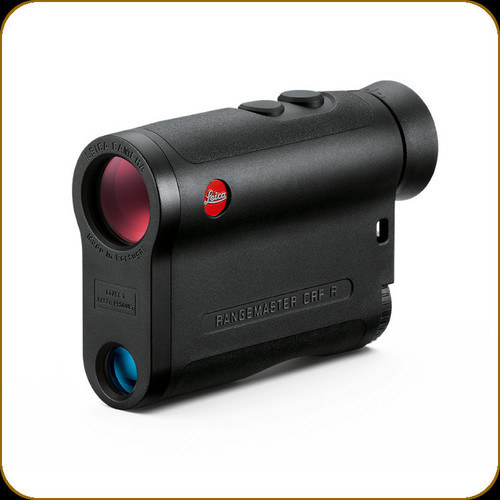

Leica Rangemaster CRF

Reveals what really matters.

The Leica Rangemaster CRF R is the ideal entry to the class of compact laser rangefinders. But this model is also chosen by “old hands” who prefer to focus on the essentials. All functions have been significantly improved. Excellent optics and high-precision rangefinding are housed in the small, particularly grippy housing. When every second counts, the Leica Rangemaster CRF R reveals its talents: the exact measurement result in under 0.3 seconds. At up to 1,800 meters, uphill and down – for a safe and ethical shot. Hunters can choose to display the actual measured range or the equivalent horizontal range (EHR). With EHR, point-of-impact deviation is taken into account for angle shots. Thanks to easy operation and the one-hand concept, aiming and measuring are one motion. This saves valuable time whenever the hunting situation threatens to change.

The essentials:

• Ideal entry-level model with output of linear and EHR from 10 m to 1,100 m / 1,200 yds
• High-precision rangefinding up to 1,800 m / 2,000 yds
• Outstanding, easy-to-read LED display with automatic brightness control
• Brilliant, clear image, high level of detail – even at twilight

Magnification: 7 x

Front lens diameter: 24 mm

Exit pupil: 3.4 mm

Twilight factor: 13

Field of view at 1,000 yds / 1,000 m: 115 m / 405 ft

Eye-relief: 15 mm

Objective angle of view: 6.6°

Diopter compensation: +/- 3.5 dpt.

Close-up range: 10 m / approx. 16 ft

Eyecups: Turn down rubber eyecups

Range: 10 to approx. 1800 m / 2000 yds

Range (EHR): 10 to approx. 1800 m / 2000 yds

Equivalent horizontal range (EHR): 10 m to approx. 1100 m / 1200 yds

Measuring accuracy: +/- 0.5 m at 10-200 m, +/- 0.5 yds at 10-219 yds, +/- 1.0 m at 200-1000 m, +/- 1.0 yds at 219-1093 yds, +/- 0.5 % beyond 1000 m, +/- 0.5 % beyond 1093 yds

Eyepieces for eyeglass wearers: Yes

Coating: High Durable Coating (HDC™)

Prism system: Roof prisms with phase-correction coating P40

Laser: Eye-safe, invisible Class 1 laser acc. to EN and FDA

Laser beam divergence: to EN and FDA Laser beam divergence

Measuring time: Maximum approx. 0.3 s

Measuring mode: Scanning mode, single measurement

Display: LED display with 4 digits, ambient light-controlled brightness regulation

Switching option: meters/yards: yes

Output “equivalent horizontal range” (EHR): yes

Angle sensor: yes

Battery lifetime: approx. 3000 measurements at 20 °C / 68 °F

Watertightness: water pressure-tight to 1 m / 3.2 ft

Housing: Glass fiber reinforced plastic

Dimensions (W x H x D): 113x78x35 mm

Weight: approx. 180 g incl. battery
