Mounting Hardware is Included

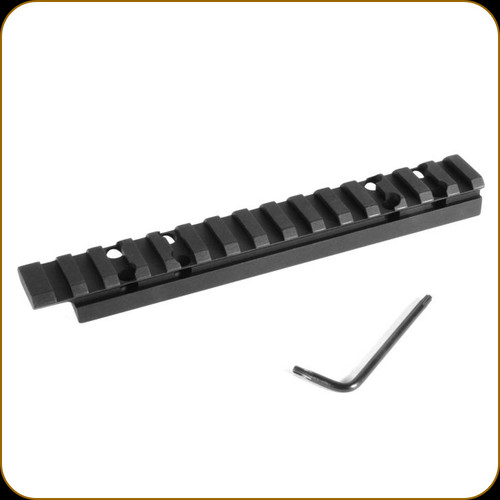

This mount fits:
Browning X-Bolt Short Action

Older model X-Bolts had front screw holes that were threaded to the top of the receiver. Newer models now have a deeper countersink. This countersink prevents the mounting screws from engaging multiple threads and can cause the holes to strip out in the receiver. We have changed the depth of the countersink on mounts made after January 2021. The date code can be found on the bottom of the mount. If the last 2 digits are 21 or higher, your mount has the deeper countersink.

Older mounts may require longer front screws. We recommend test fitting the screws before Loctiting to check for proper engagement. If the screws only engage with one thread, please contact us and we will provide longer screws (.335” OAL). If the screws bottom out before tightening the mount, we recommend removing a bit of material from the screw. The front screws can be torqued to 10 in/lbs.

We STRONGLY suggest taking your gun to a qualified and competent gunsmith to have this mount installed.

Machined From: 4140 Carbon Steel
Finish: Parkerized
Center Spread: 2.94"
Overall Length of Mount: 6.184"
Height: .525" (Top of Receiver to Top of Picatinny)
Weight: 5.6 oz
Quick Disconnect Ring Compatible: Yes
Ambidextrous: Yes
Compatible with Picatinny or Weaver scope rings.
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
Torque Specs: 20 in/lbs

Older model X-Bolts had front screw holes that were threaded to the top of the receiver. Newer models now have a deeper countersink. This countersink prevents the mounting screws from engaging multiple threads and can cause the holes to strip out in the receiver. We have changed the depth of the countersink on mounts made after January 2021. The date code can be found on the bottom of the mount. If the last 2 digits are 21 or higher, your mount has the deeper countersink.

Older mounts may require longer front screws. We recommend test fitting the screws before Loctiting to check for proper engagement. If the screws only engage with one thread, please contact us and we will provide longer screws (.335” OAL). If the screws bottom out before tightening the mount, we recommend removing a bit of material from the screw. The front screws can be torqued to 10 in/lbs.

This mount is made specifically for the Browning X-Bolt Short Action. Please check your center spread and select the correct mount. There have been issues with some guns being chambered for a certain action length and having a different length action. EX: 22-250 in a WSSM action. Please make sure the scope mount you are selecting has the correct center spread!

These bases sit at approximately 0.525” high.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The cross slots are also machined the full width of the mount and gauged to MIL-STD 1913 specs maintaining tolerances of +/-.002".

After machining; the mounts are tumbled and sand blasted. The aluminum mounts are Type III hard coat anodized for long lasting durability. The steel rails are Mil Spec parkerized for a durable rust resistant finish.

We recommend:
0 MOA - if shooting 0-500 yards
20 MOA - if shooting 500-1000 yards

When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.

Compatible with Picatinny or Weaver scope rings. Add EGW’s HD Scope Rings to make it a complete package!

From manufacturing to packaging, EGW’s products are made with pride in the USA.

Installation: EGW recommends 20 inch lbs of torque and a drip of blue loctite.
